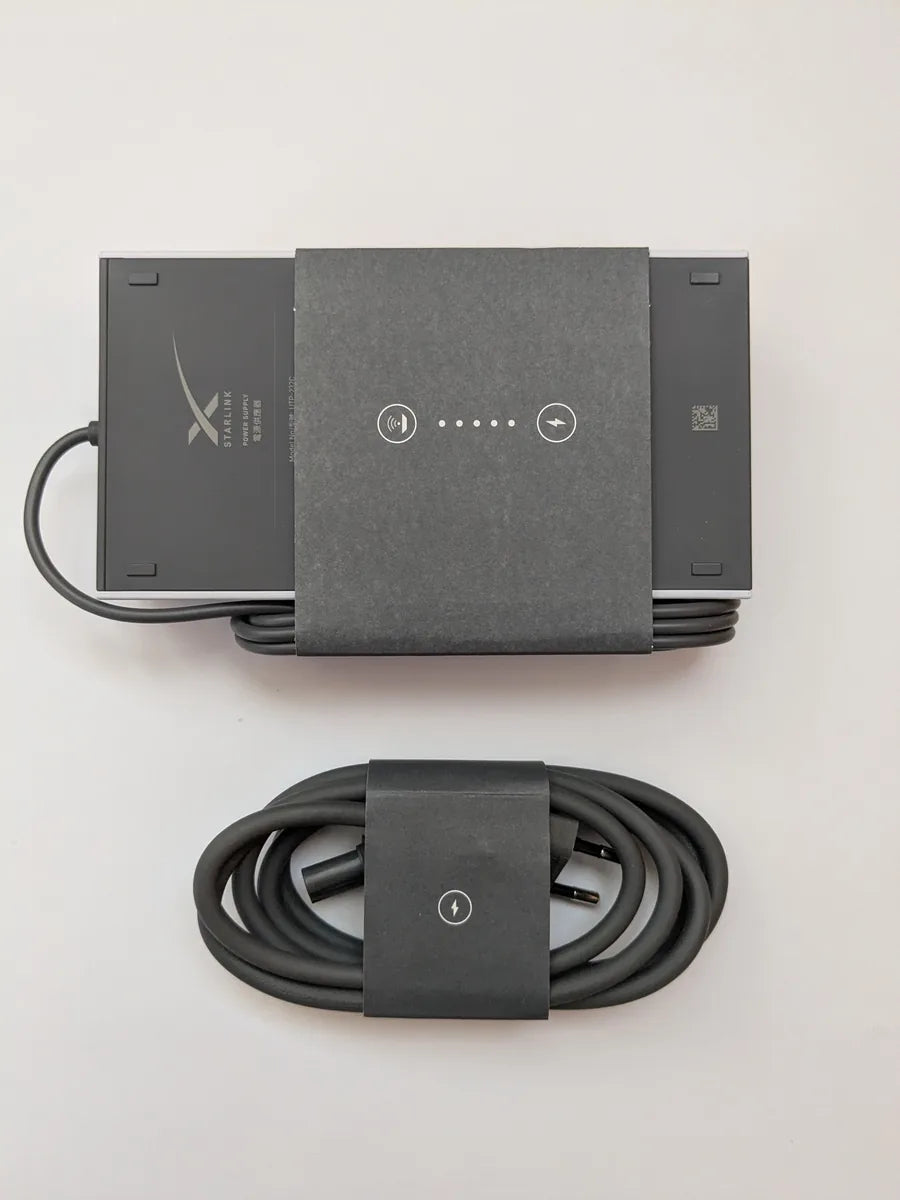

Genuine Starlink Gen 3 power supply in its factory sleeve with the coiled AC cable below it.

Genuine Starlink Gen 3 Power Supply 195W — OEM + Free Mount

€149,00
Skip to product information
Genuine Starlink Gen 3 power supply in its factory sleeve with the coiled AC cable below it.
  • Genuine Starlink Gen 3 power supply in its factory sleeve with the coiled AC cable below it.

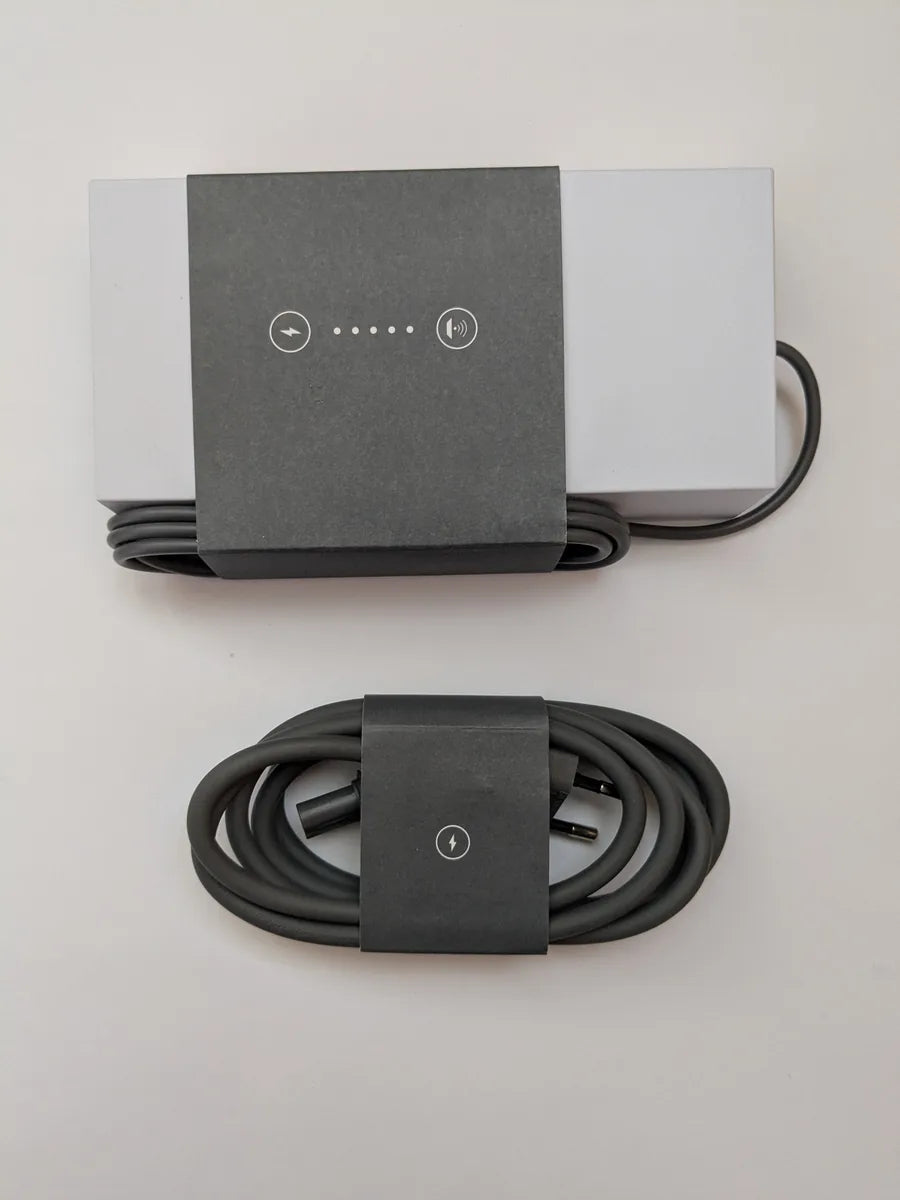

  • Overhead view of the Starlink power supply and its separately coiled AC cable on a pale surface.

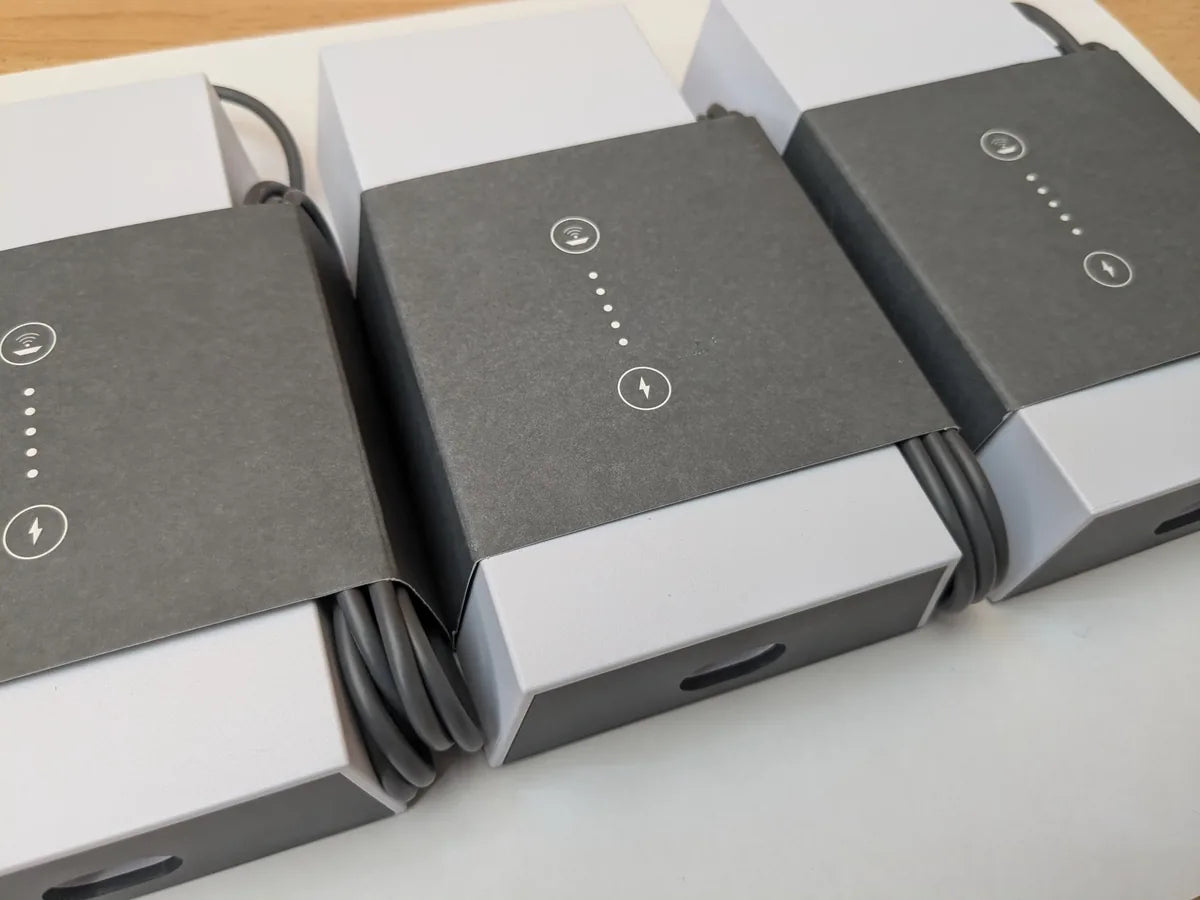

  • Three Starlink Gen 3 power supplies in original packaging, lined up with cables wound in place.

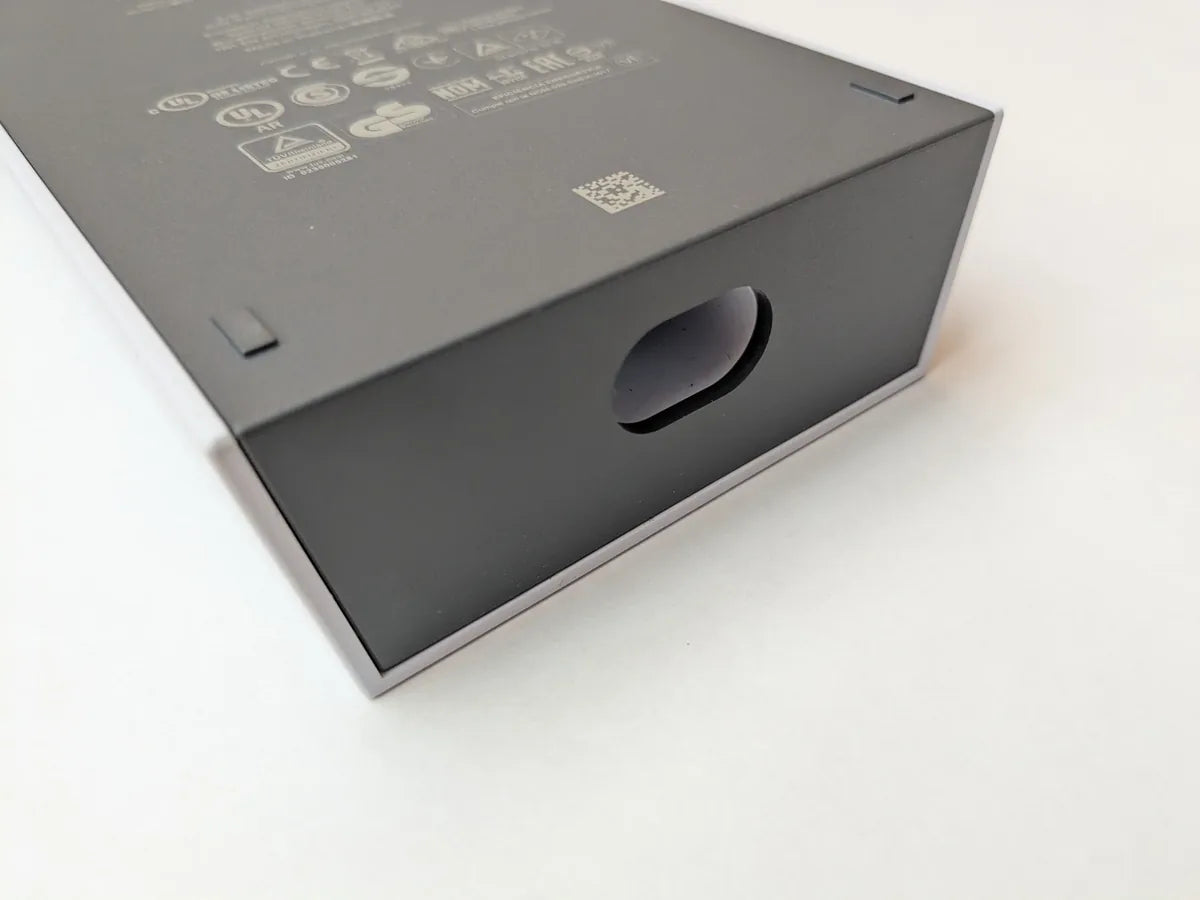

  • Close detail of the Starlink power supply packaging showing certification marks and the cable port.

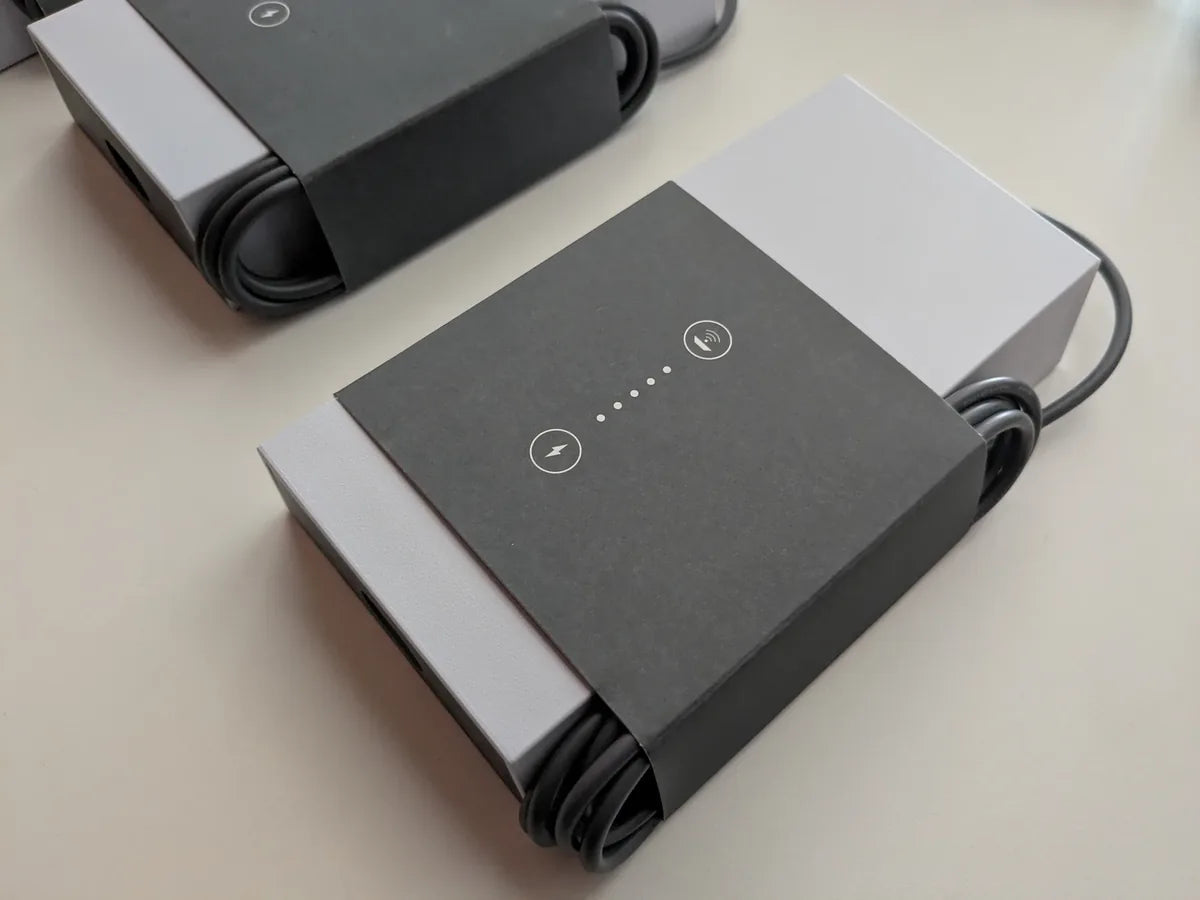

  • Angled view of a packaged Starlink power supply with its cable wound around the printed sleeve.

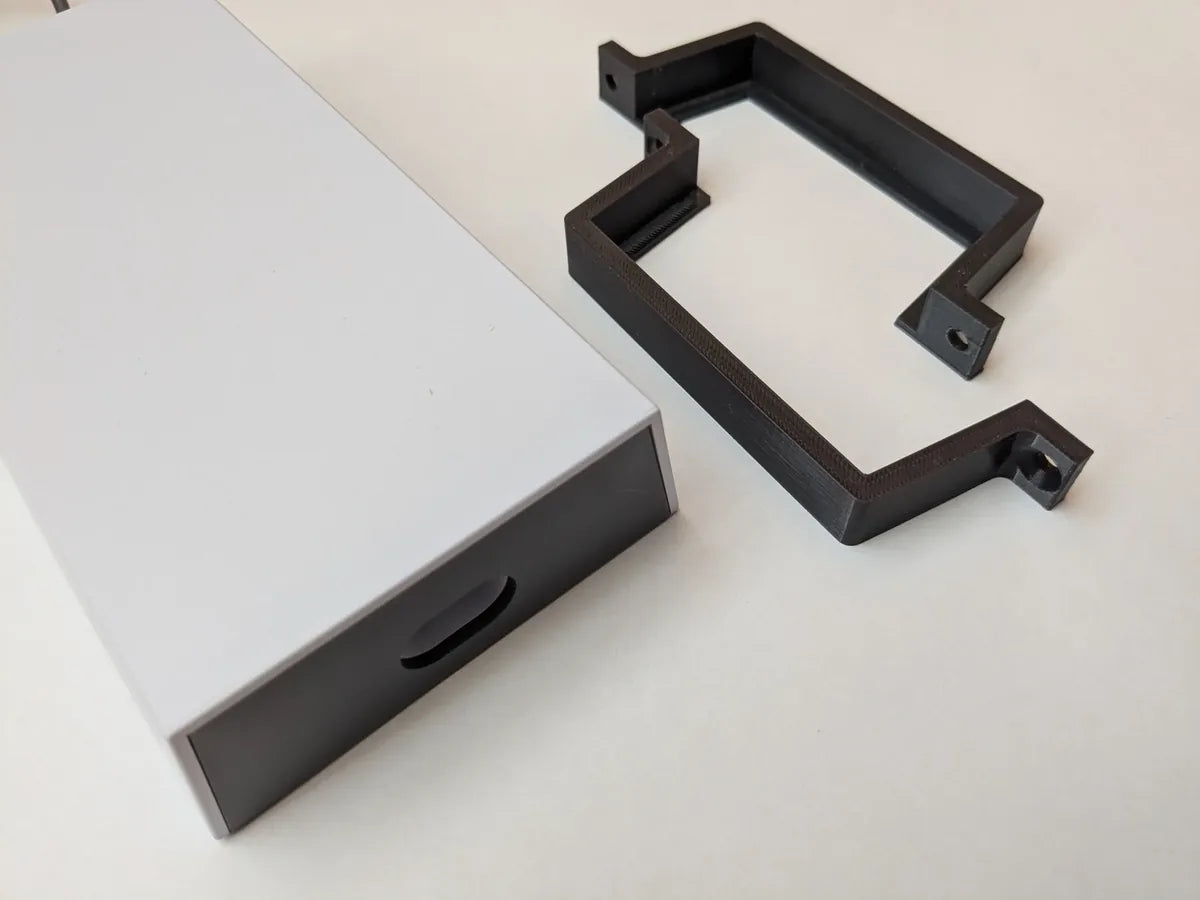

  • Starlink power supply body next to the black StarMax 3D-printed wall mount bracket, angled view.

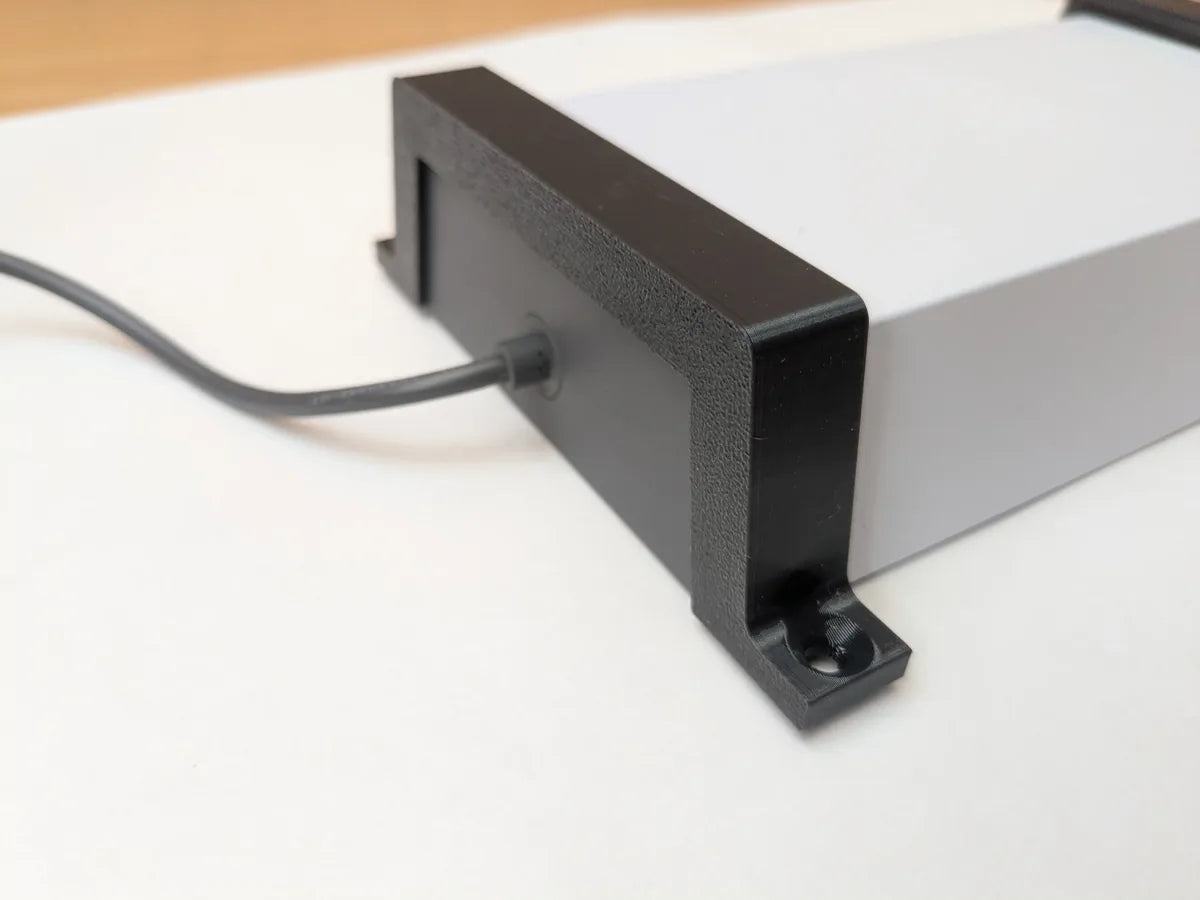

  • Black StarMax bracket clamped onto the end of the Starlink power supply, cable exiting alongside.

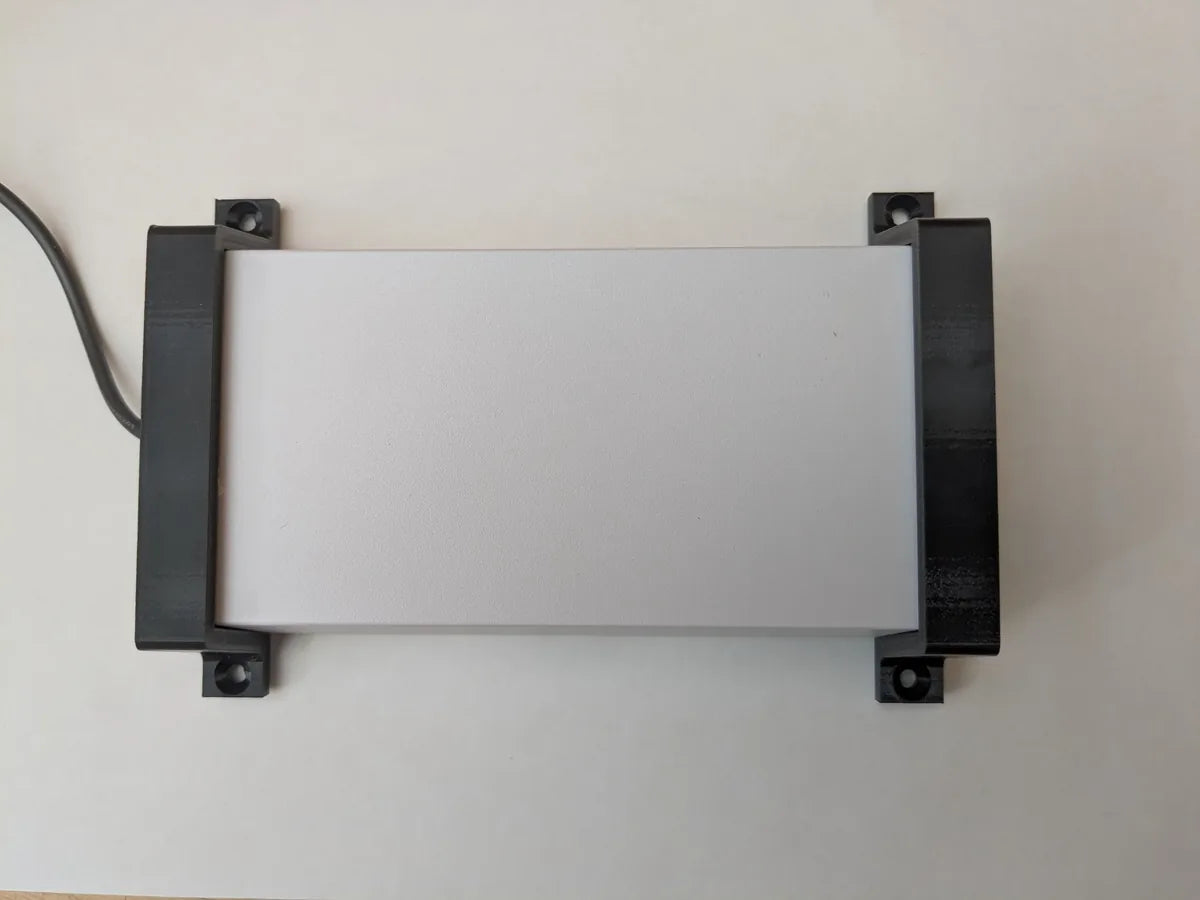

  • Starlink power supply seen from above with StarMax wall mount brackets fitted at both ends.

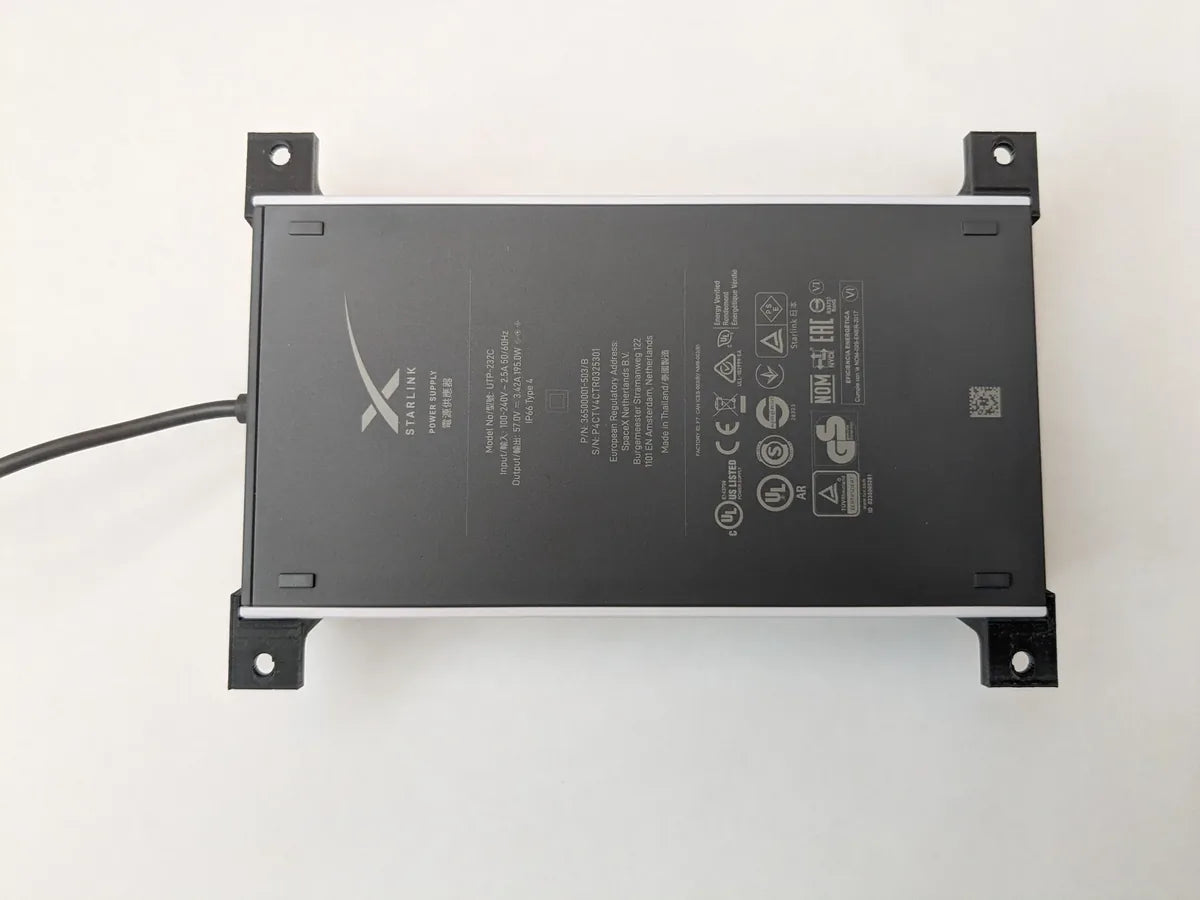

  • Specification label of the Starlink UTP-232C power supply showing the 57V and 195W output rating.

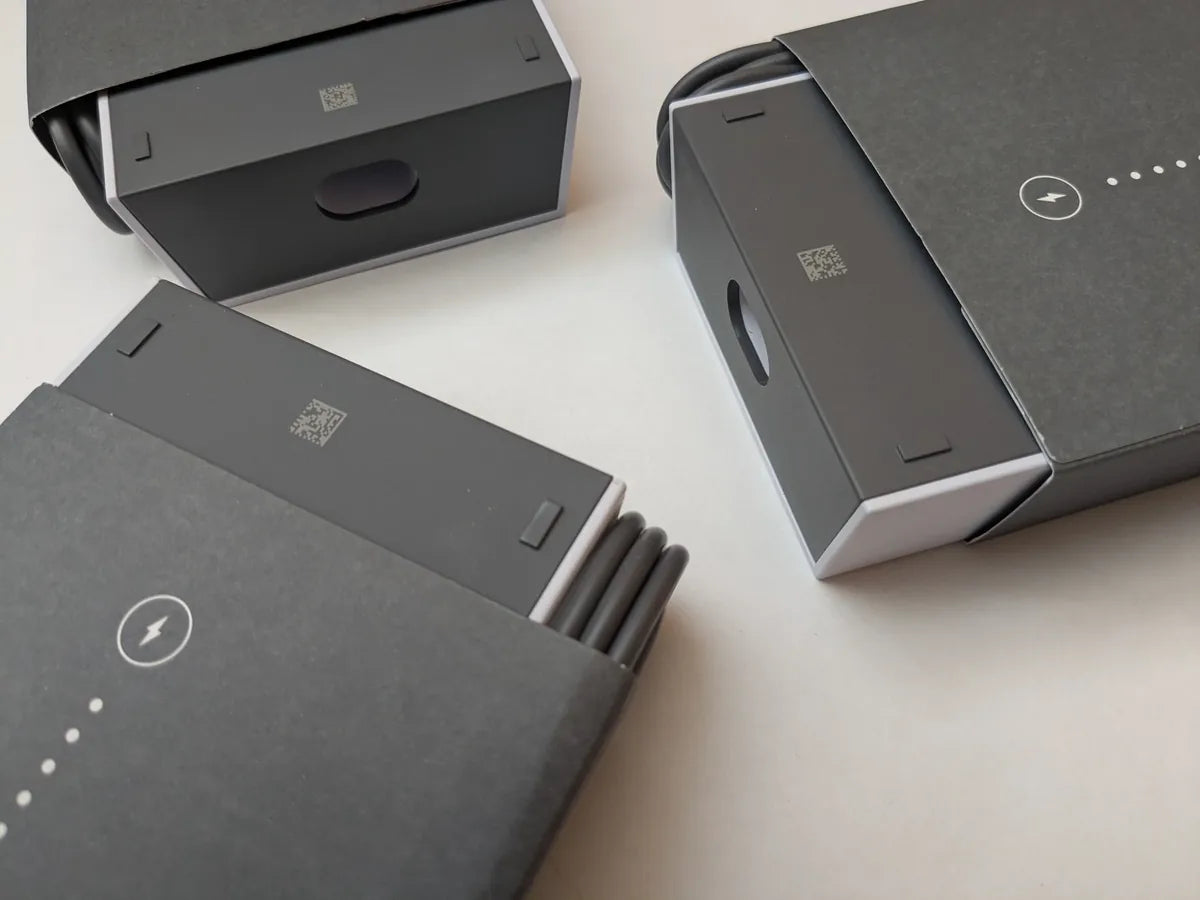

  • Several packaged Starlink power supplies grouped together, printed sleeves and ports visible.

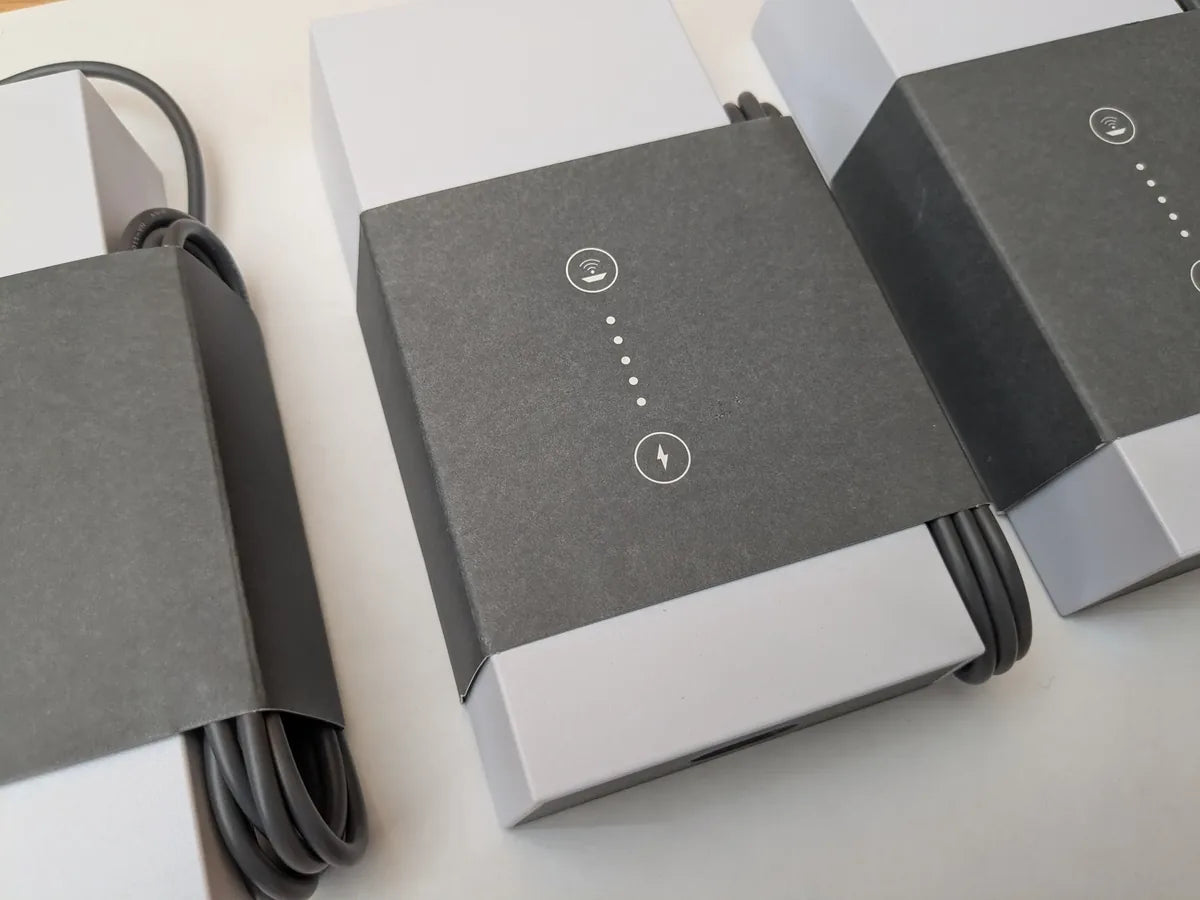

  • Row of packaged Starlink power supplies with their cables wound around the factory sleeves.

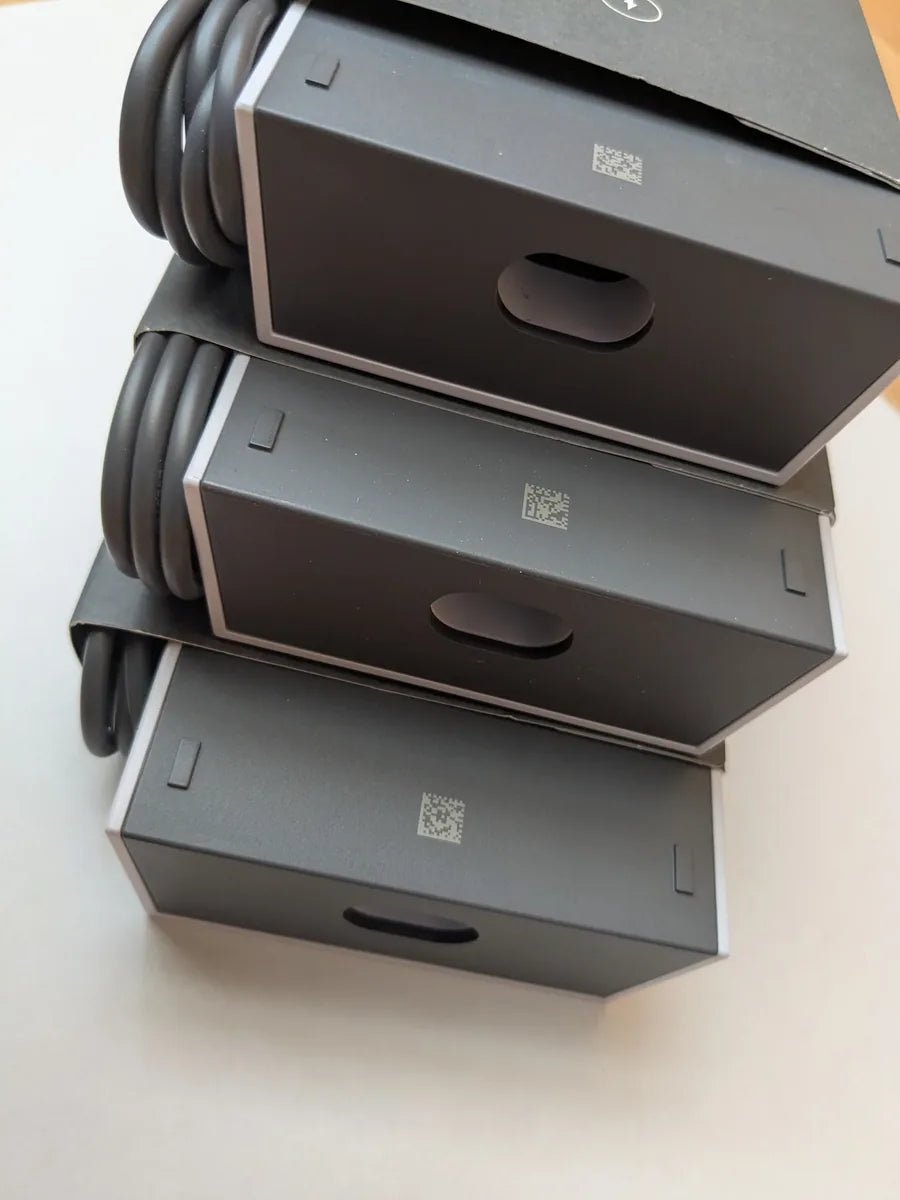

  • Three boxed Starlink Gen 3 power supplies stacked, each with the coiled cable held at the side.

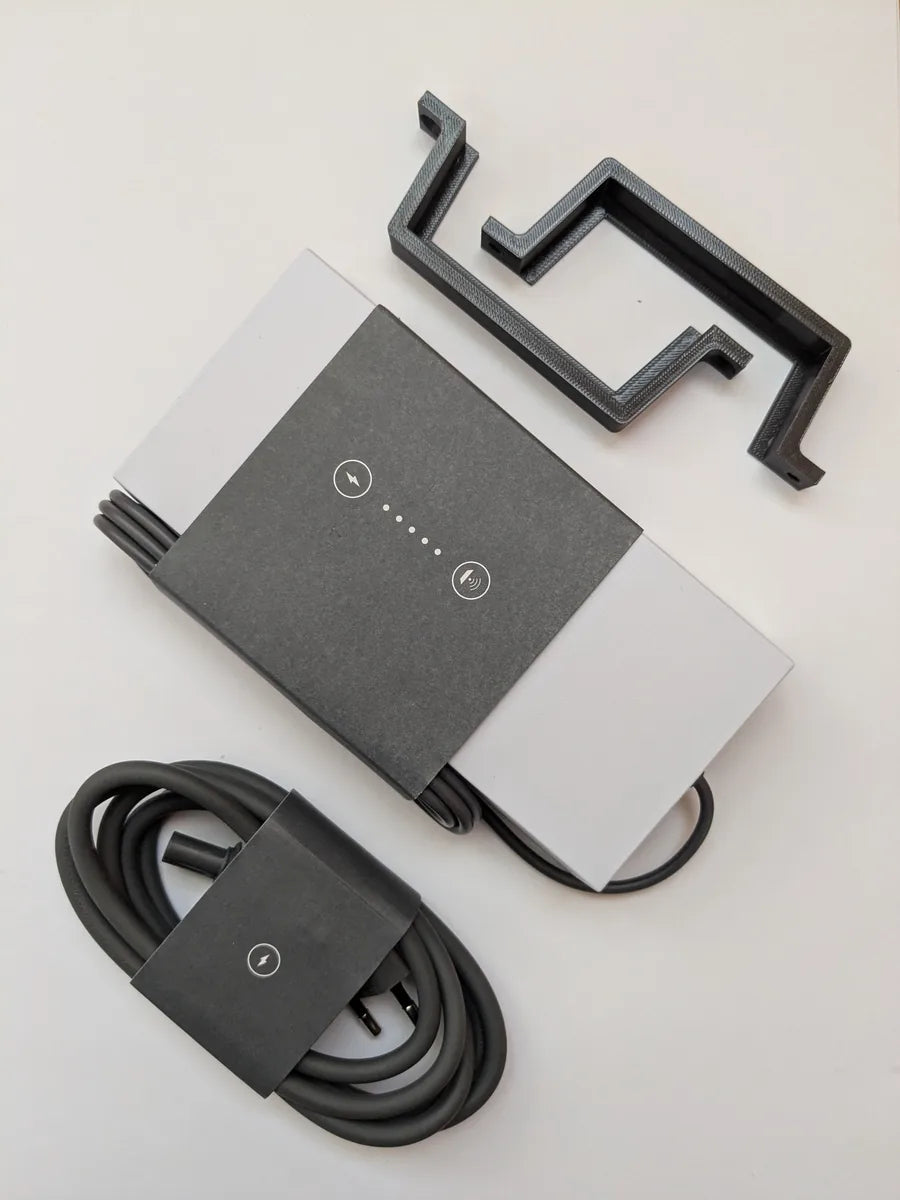

  • Starlink power supply, coiled AC cable and the black StarMax bracket pair, seen from above.

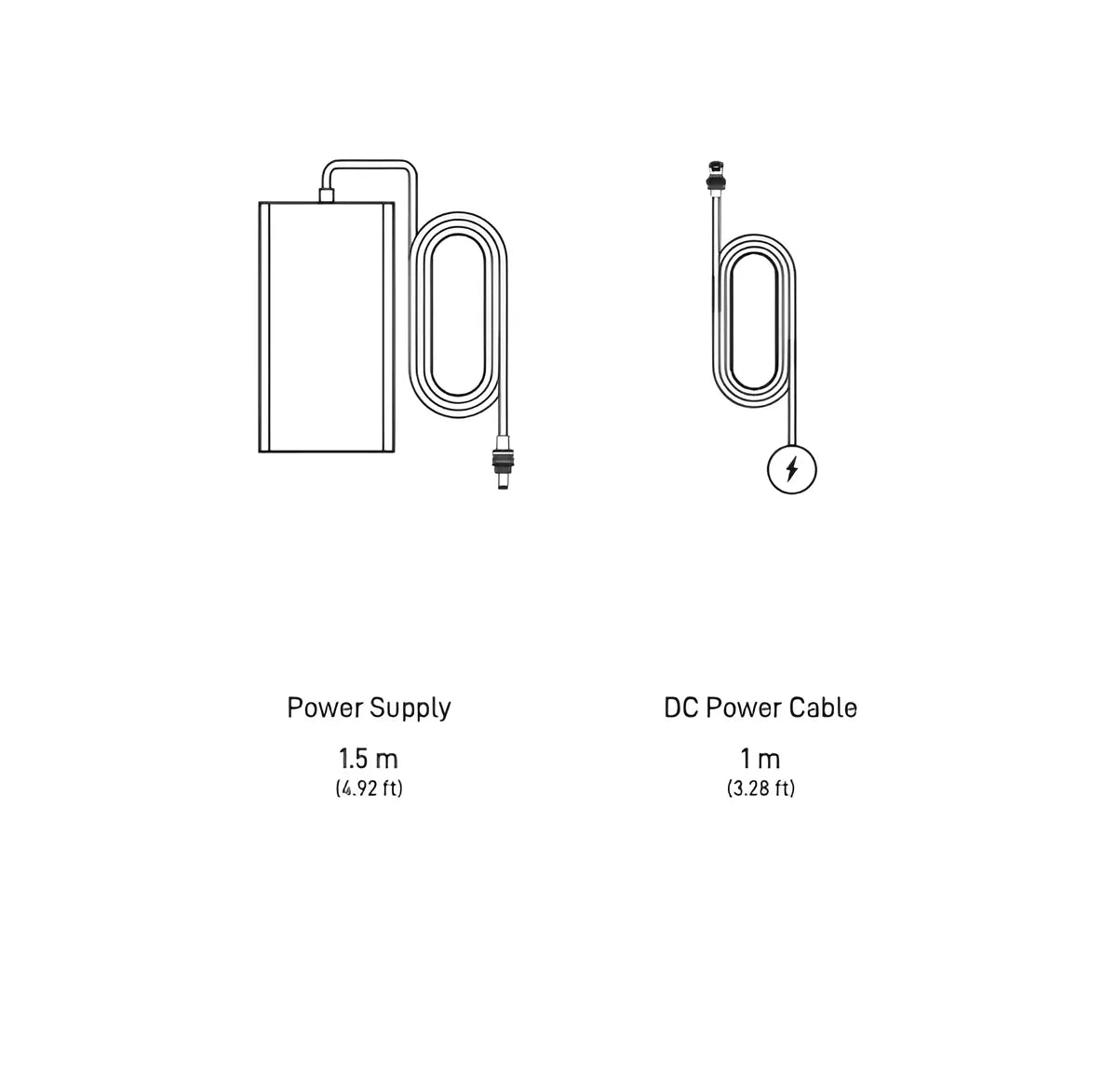

  • Diagram giving the Starlink power supply lead as 1.5 m and the DC power cable as 1 m.
  • Genuine Starlink Gen 3 power supply in its factory sleeve with the coiled AC cable below it.
  • Overhead view of the Starlink power supply and its separately coiled AC cable on a pale surface.
  • Three Starlink Gen 3 power supplies in original packaging, lined up with cables wound in place.
  • Close detail of the Starlink power supply packaging showing certification marks and the cable port.
  • Angled view of a packaged Starlink power supply with its cable wound around the printed sleeve.
  • Starlink power supply body next to the black StarMax 3D-printed wall mount bracket, angled view.
  • Black StarMax bracket clamped onto the end of the Starlink power supply, cable exiting alongside.
  • Starlink power supply seen from above with StarMax wall mount brackets fitted at both ends.
  • Specification label of the Starlink UTP-232C power supply showing the 57V and 195W output rating.
  • Several packaged Starlink power supplies grouped together, printed sleeves and ports visible.
  • Row of packaged Starlink power supplies with their cables wound around the factory sleeves.
  • Three boxed Starlink Gen 3 power supplies stacked, each with the coiled cable held at the side.
  • Starlink power supply, coiled AC cable and the black StarMax bracket pair, seen from above.
  • Diagram giving the Starlink power supply lead as 1.5 m and the DC power cable as 1 m.
Genuine Starlink Gen 3 Power Supply 195W — OEM + Free Mount

Genuine Starlink Gen 3 Power Supply 195W — OEM + Free Mount

€149,00

This is the genuine Starlink Gen 3 power supply (UTP-232C), the OEM unit supplied with Starlink Standard Gen 3 (V4) kits. It delivers 57 V DC at 3.42 A — 195 W total — from a sealed IP66 Type 4 enclosure, and drops straight in where the original was, with no adapters or configuration.

Specifications read from the unit label

Model UTP-232C
Part number 36500001-503/B
Input 100–240 V AC, 2.5 A, 50/60 Hz
Output 57.0 V DC, 3.42 A, 195.0 W
Ingress protection IP66, Type 4 enclosure
Power supply lead 1.5 m (4.92 ft)
DC power cable 1 m (3.28 ft)
Manufactured in Thailand
Condition {{CONFIRM: new sealed, open box, or pulled from kit}}
Included free StarMax 3D-printed wall mount bracket pair

The label on the unit is shown in photo 9, so you can compare it directly against your own before ordering.

Will this fit my Starlink?

Setup Fits Notes
Starlink Standard Gen 3 (V4) Yes The kit this unit ships with.
Starlink Gen 2 rectangular {{CONFIRM}} Different output rating — state plainly either way.
Starlink Mini No The Mini uses a 60 W supply, not this 195 W unit.
Any 100–240 V mains Yes Universal input, so 120 V and 230 V regions are both covered.

The reliable check is your existing unit's label: if it reads UTP-232C with a 57 V / 3.42 A output, this is a direct match.

When you need this

Replace the supply if the dish stays dark with no boot sequence, if the unit was killed by a surge, flooding or rodent damage, or if you bought a kit second-hand that arrived without one. It is also the part worth keeping spare at a remote or seasonal site, where a dead supply means no connection at all until a replacement arrives.

What is included

Included: the genuine Starlink power supply, plus a free StarMax 3D-printed wall mount bracket pair — our own design and manufacture, not a Starlink part.
Not included: the dish and the router, and {{CONFIRM: the AC power cable — photos 1, 2 and 13 show one, so this must be stated explicitly}}.

The free wall mount

Every order ships with a pair of StarMax printed brackets that clamp the end caps of the supply and screw to a wall or panel (photos 6, 7, 8 and 13). It lifts the unit clear of the floor, away from standing water and dust, and keeps the cable run controlled. The bracket clamps the end cap without blocking the cable exit.

Frequently asked questions

How do I know this is the right supply?
Read the label on your existing unit. If it says UTP-232C with a 57 V / 3.42 A / 195 W output, this is the same part. Photo 9 shows our label so you can compare before ordering.

Will a cheaper generic 57 V supply work instead?
{{CONFIRM — answer from your own experience, and be specific about what actually goes wrong. This is the single most valuable answer on the page: buyers can find unmarked 57 V bricks anywhere, and a concrete honest answer converts far better than a price cut.}}

Can I mount it outdoors?
The enclosure is rated IP66 and Type 4, so it tolerates dust and heavy water jets. {{CONFIRM: whether you recommend permanent unsheltered mounting, and any caveat about the connector ends.}}

Is this a genuine Starlink part?
Yes. This is the OEM Starlink power supply, not a replica or a generic equivalent. The only StarMax-made item included is the free wall mount bracket pair, which is our own design.

Does it work on 230 V mains?
Yes. The input is rated 100–240 V at 50/60 Hz, so it works on 120 V and 230 V supplies alike; only the AC cable and plug differ by region.

Related

Pair with the genuine Starlink Gen 3 router or the 50 ft Starlink RJ45 cable. Unsure which generation you have? See the Starlink compatibility hub.
