Genuine Starlink Pipe Adapter — OEM Pole Mount for Standard Dish
Genuine Starlink Pipe Adapter — OEM Pole Mount for Standard Dish

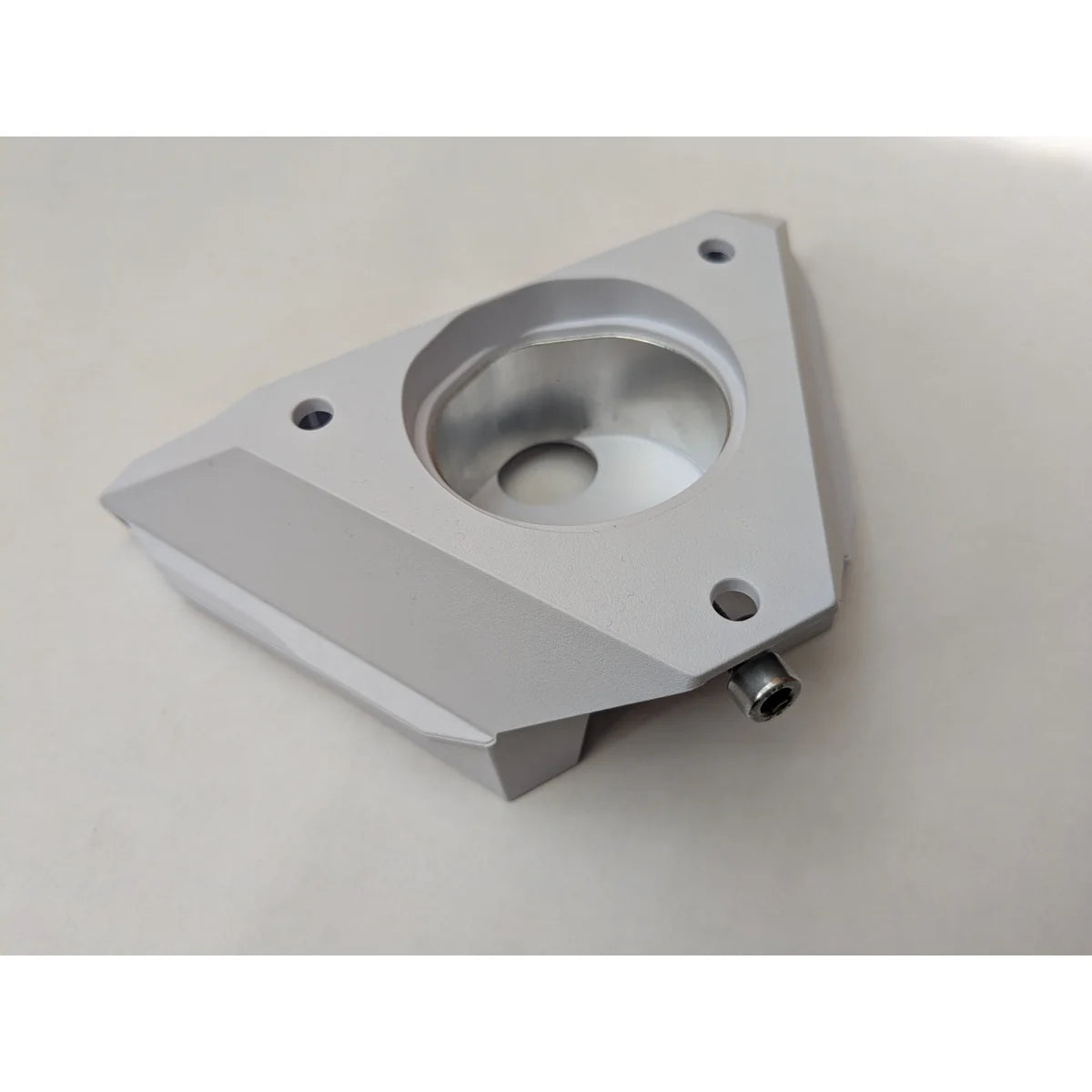

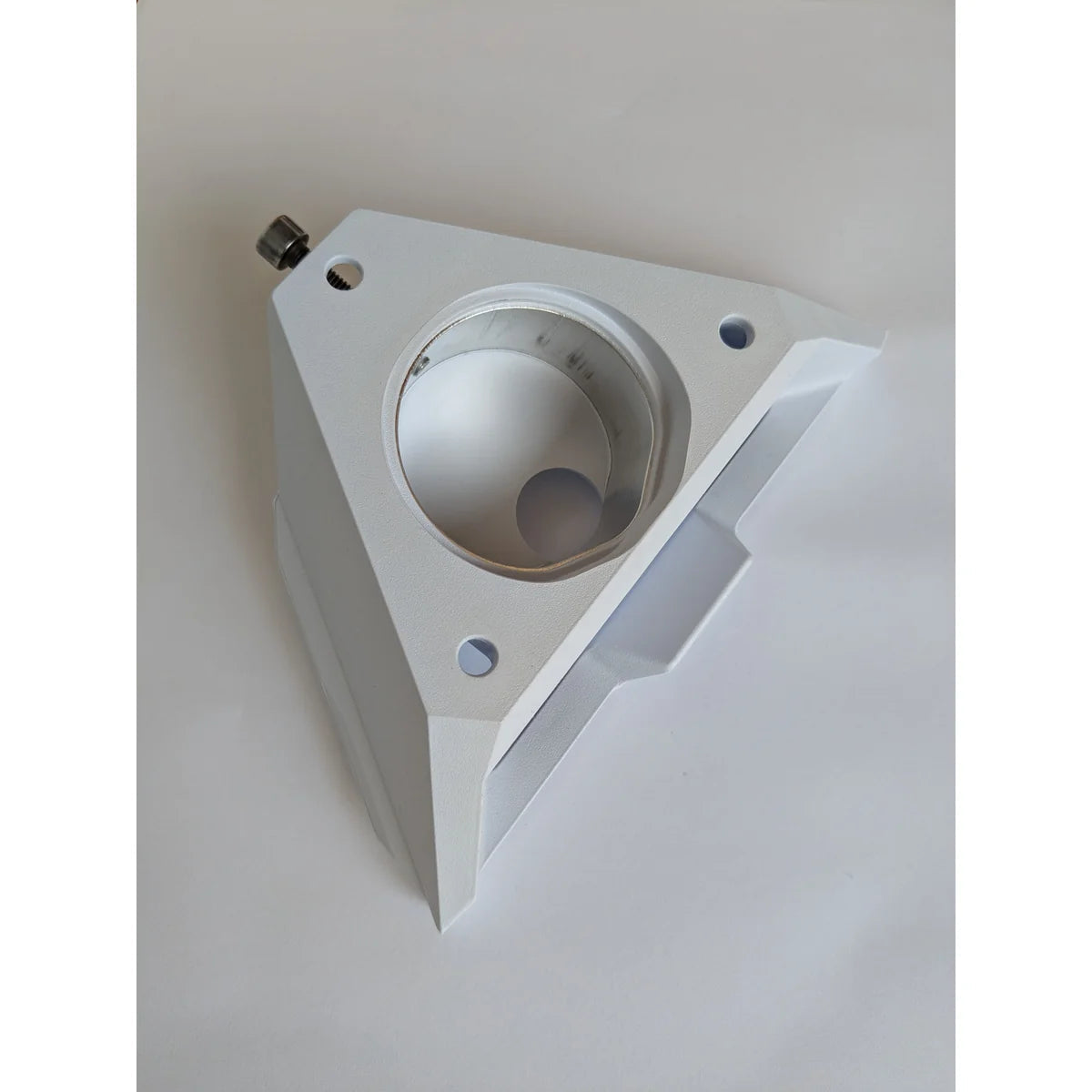

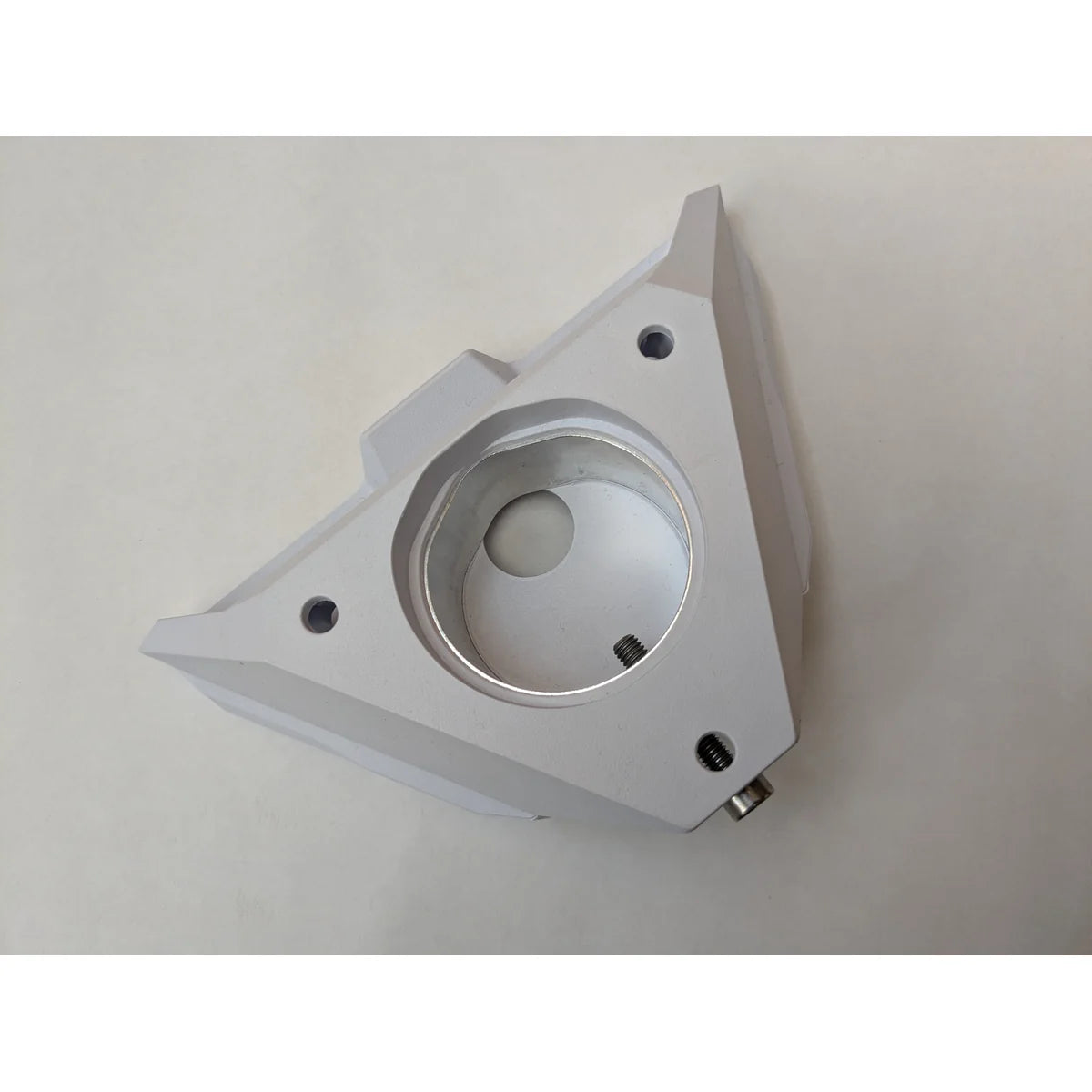

The Starlink pipe adapter is the genuine OEM mount, part number 04-176000-501, that attaches a Starlink Standard dish to an existing pole. It fits metal poles from 31 mm to 50.8 mm (1.25 to 2 in) in diameter with a minimum wall thickness of 3.6 mm, clamps with a stainless socket screw, and includes the hex key required to tighten it. It replaces the folding kickstand for permanent pole, wall or roof installations.
Which Starlink dish does this adapter fit?
| Starlink hardware | Compatible | Notes |
|---|---|---|
| Standard dish (Gen 3 / V4) | Yes | Direct OEM fit |
| Standard Actuated (Gen 2) | No | Different mounting interface |
| Starlink Mini | No | The Mini uses its own smaller mounts |
| High Performance | No | Separate mounting system |
Which poles does it fit?
| Pole | Suitable | Notes |
|---|---|---|
| Metal pole, 31–50.8 mm (1.25–2 in) | Yes | Within specification |
| Metal pole, wall thinner than 3.6 mm | Caution | Thin-wall pipe can deform when the clamp screw is tightened |
| PVC or plastic pipe | No | Not rated for plastic pipe |
| Pole over 50.8 mm | No | Will not seat |
Specifications
| Part number | 04-176000-501 |
| Also listed as | 04759103 (retail SKU) |
| Fits | Starlink Standard dish (Gen 3 / V4) |
| Pole diameter | 31–50.8 mm (1.25–2 in) |
| Minimum pole wall | 3.6 mm (0.14 in) |
| Pole material | Metal only, not PVC or plastic |
| Clamping | Stainless socket screw |
| Cable routing | Moulded channel in the body |
| Supplied with | Hex key |
| Condition | New, genuine OEM |
Why buy this adapter

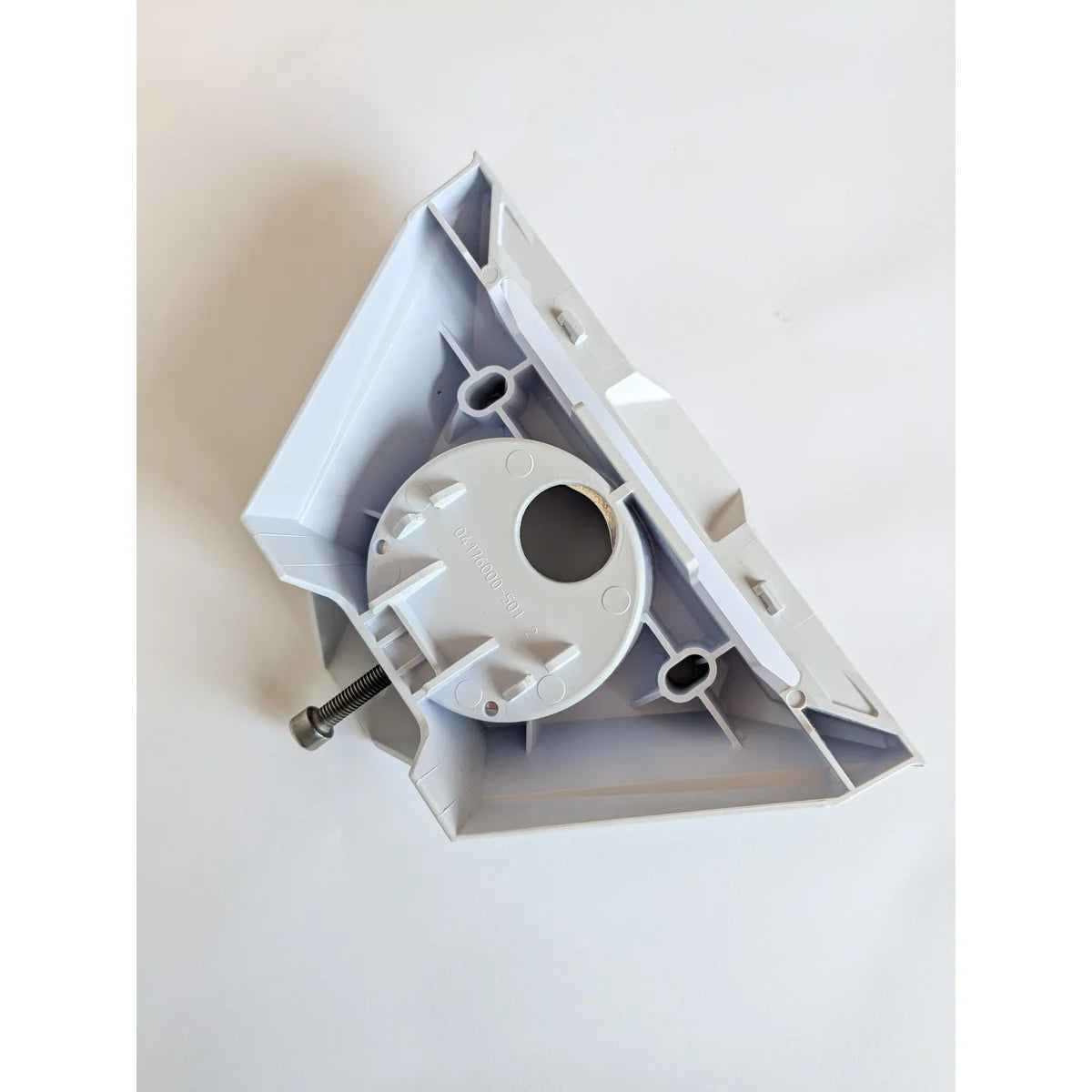

- Genuine OEM part — part number 04-176000-501 moulded into the body and shown in our photographs.
- Fits standard poles — 31 to 50.8 mm (1.25 to 2 in) metal pole, including most J-mounts.

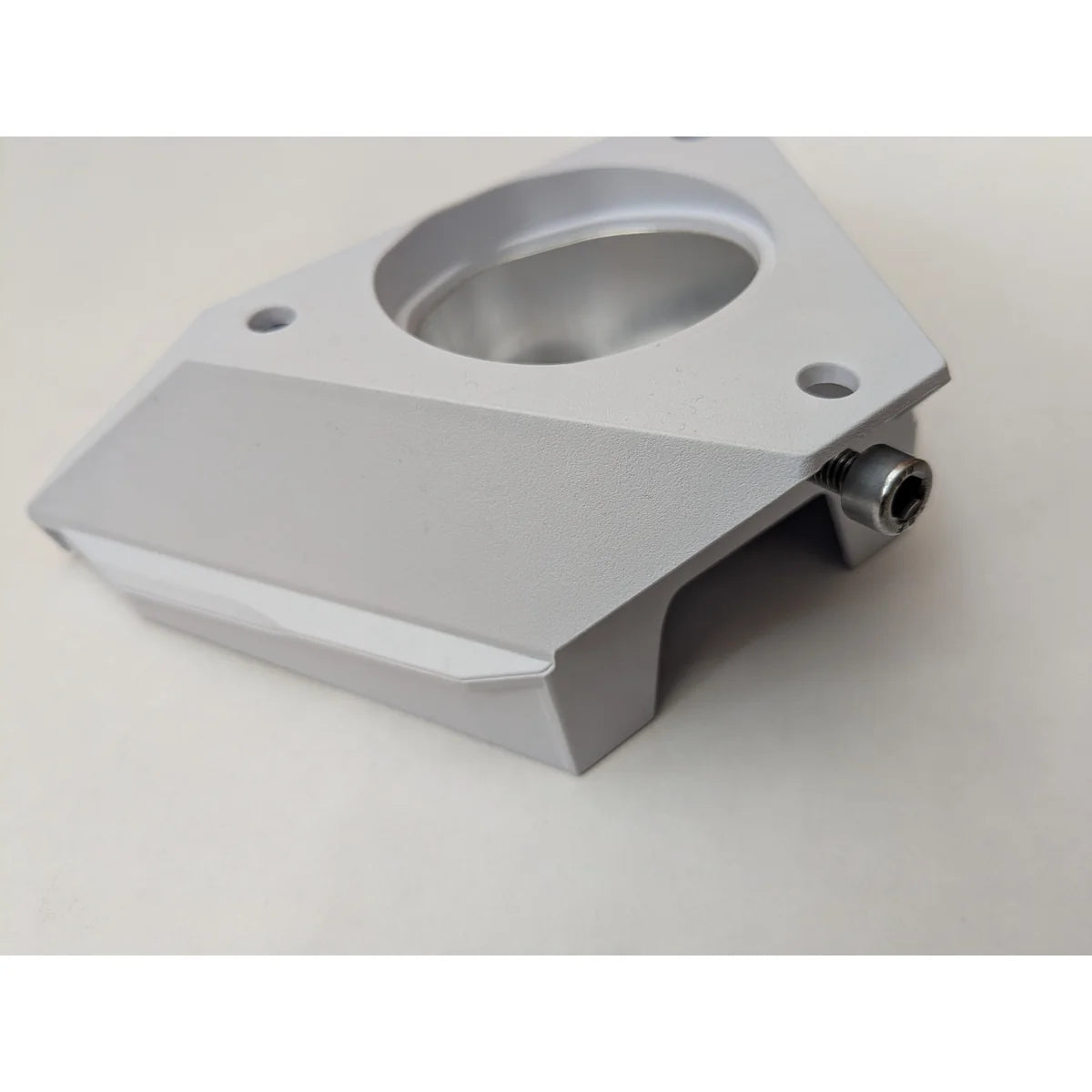

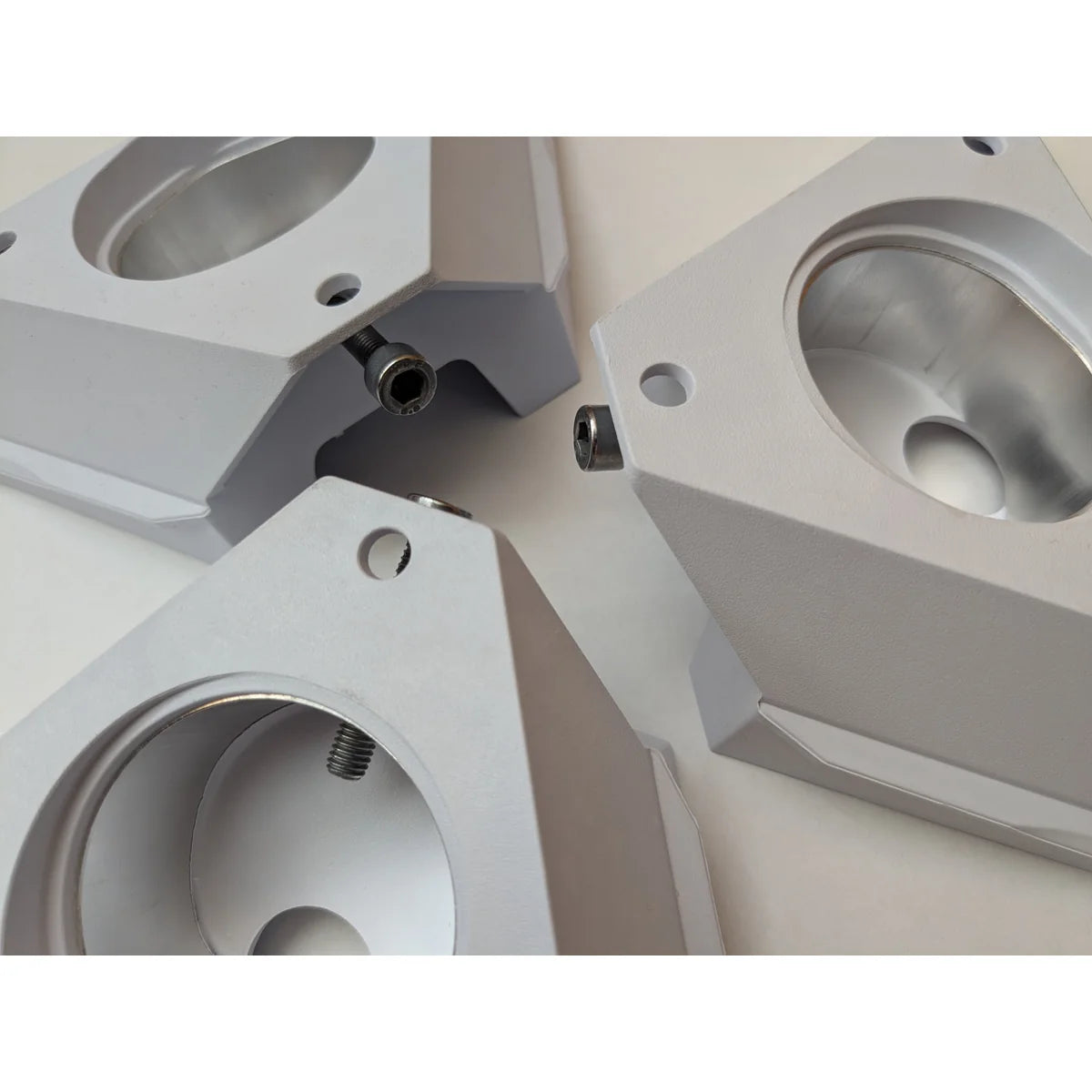

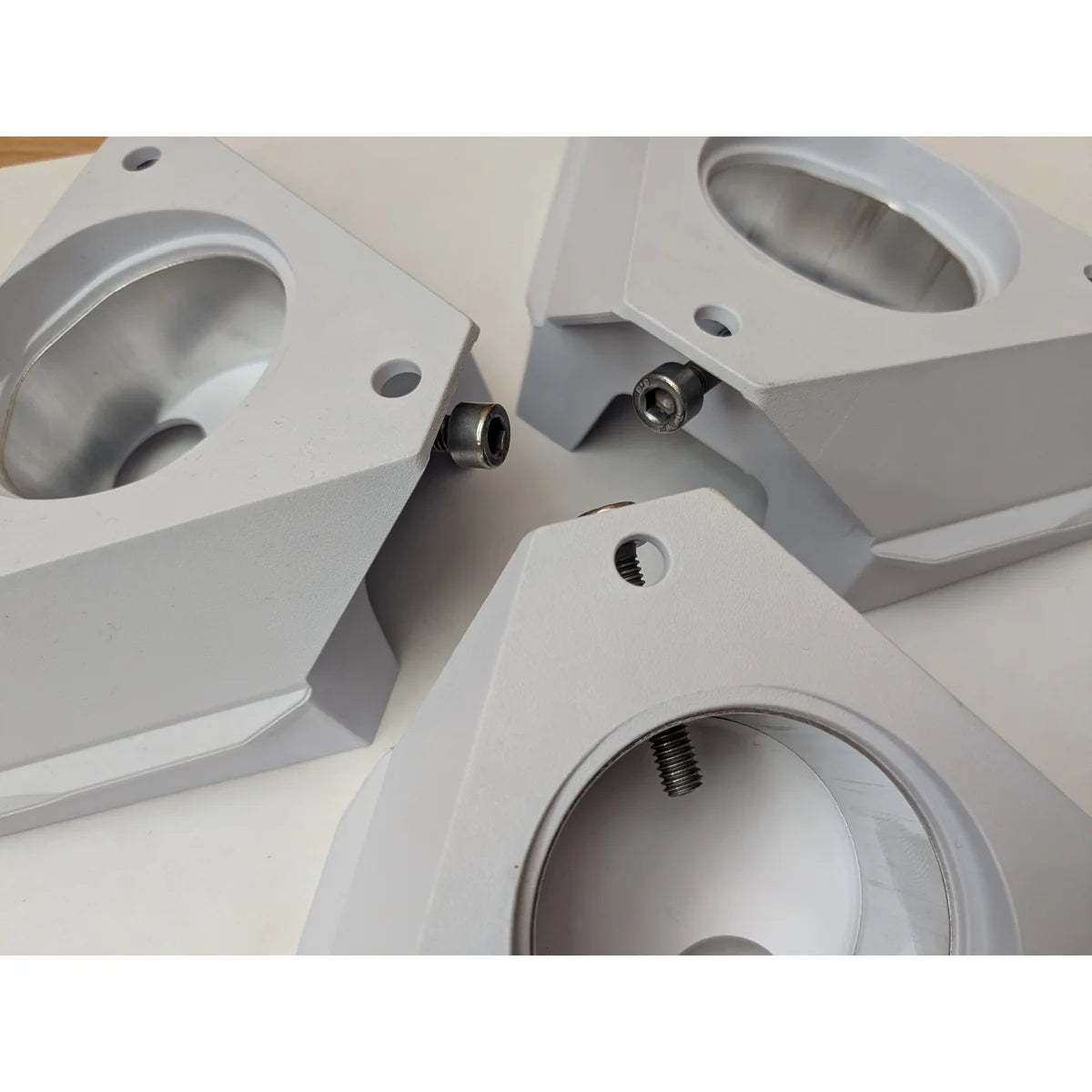

- Single-screw clamping — a stainless socket screw pulls the adapter tight to the pole.

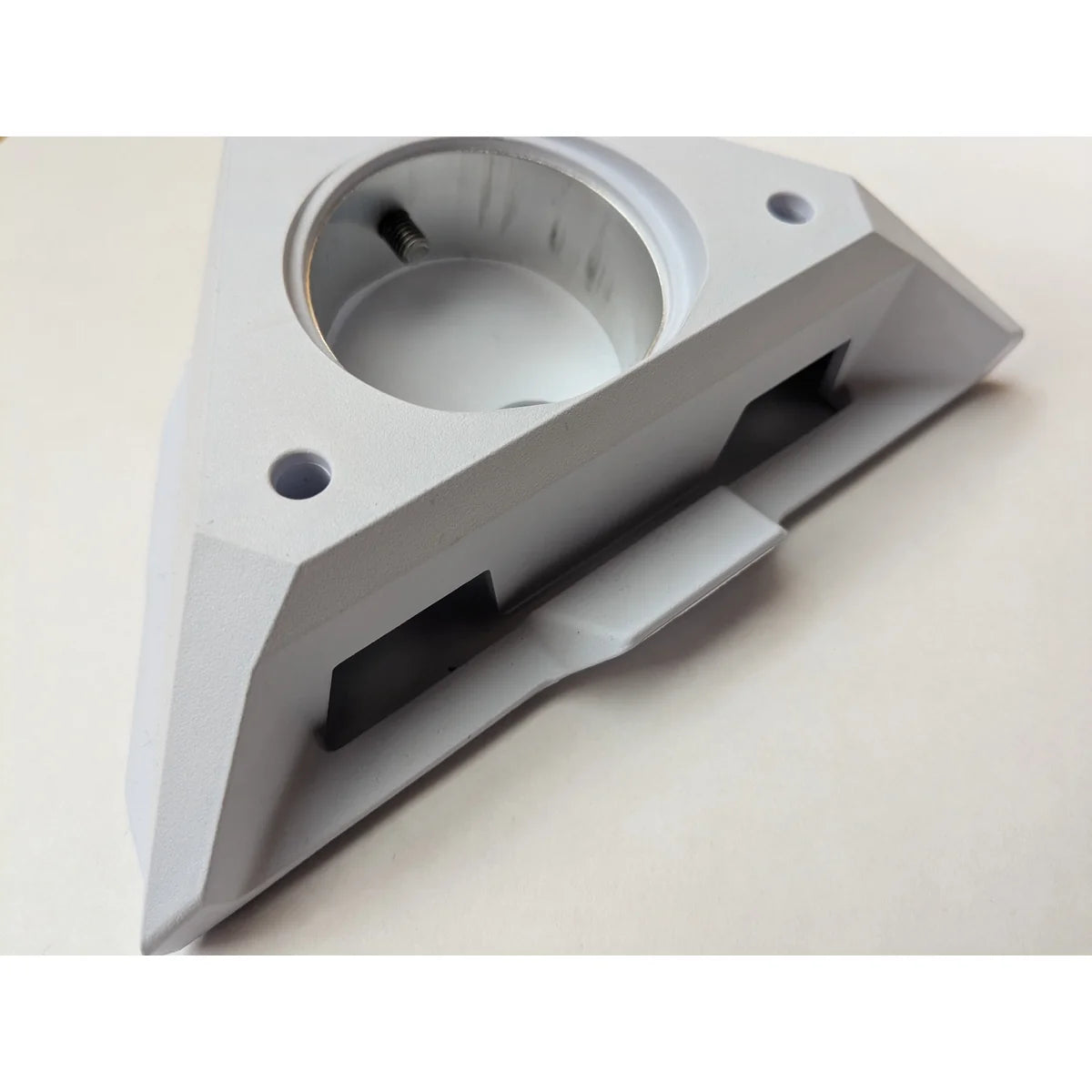

- Cable channel built in — the dish cable routes through the body instead of hanging loose.
- Hex key included — nothing else to buy or find.

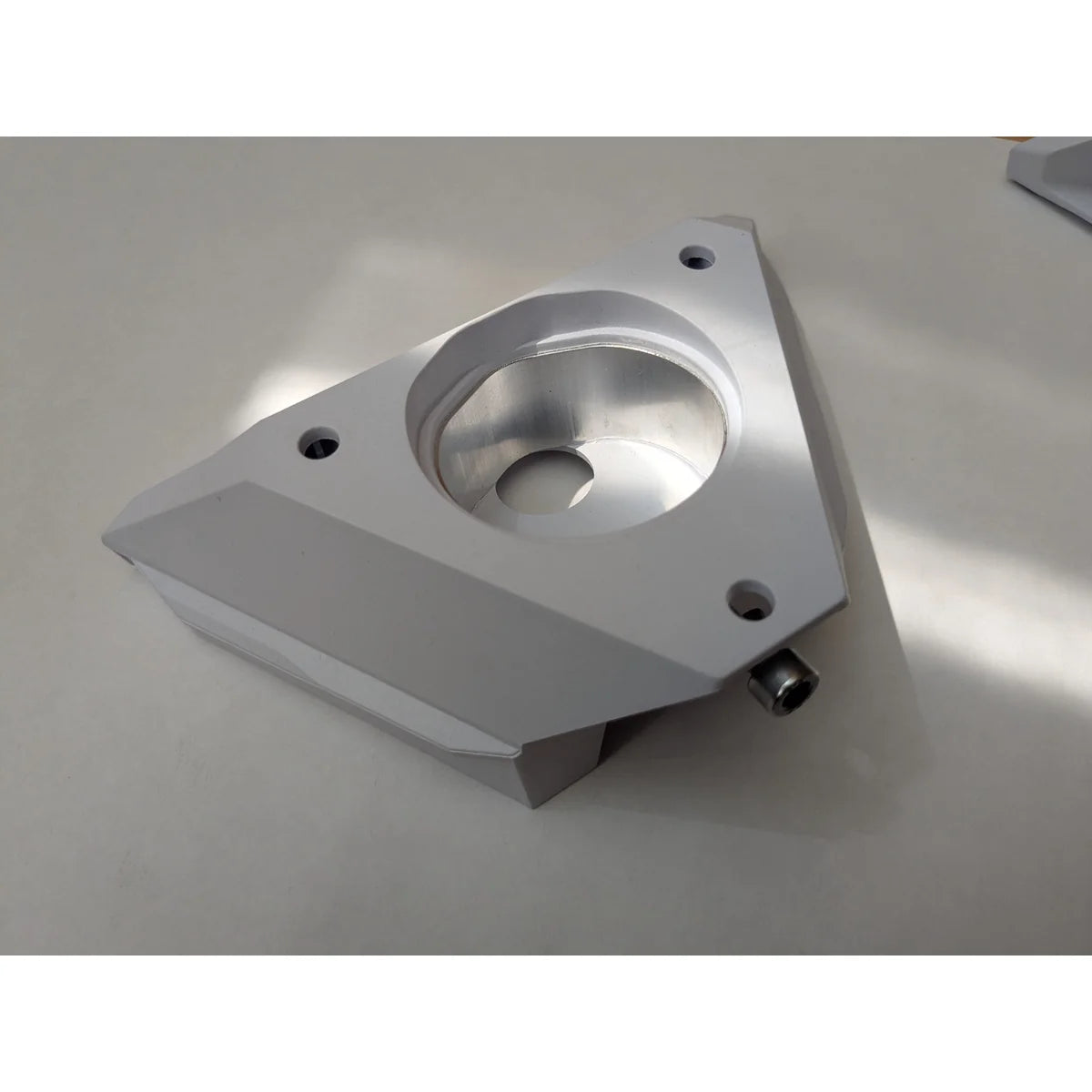

- Weather-resistant finish — built for permanent outdoor mounting.
- Beats a kickstand in wind — a pole-mounted dish stays where you put it.
- Ships in 24 hours with tracking, 30-day returns.
When should you choose a pipe adapter?
Choose the pipe adapter if you want the dish permanently mounted rather than standing free; if wind keeps moving or toppling a dish on its kickstand; if you are fitting a J-mount, wall pole or roof pole; if you need the dish higher to clear trees or a roofline; or if the original adapter cracked or was lost.
What is included

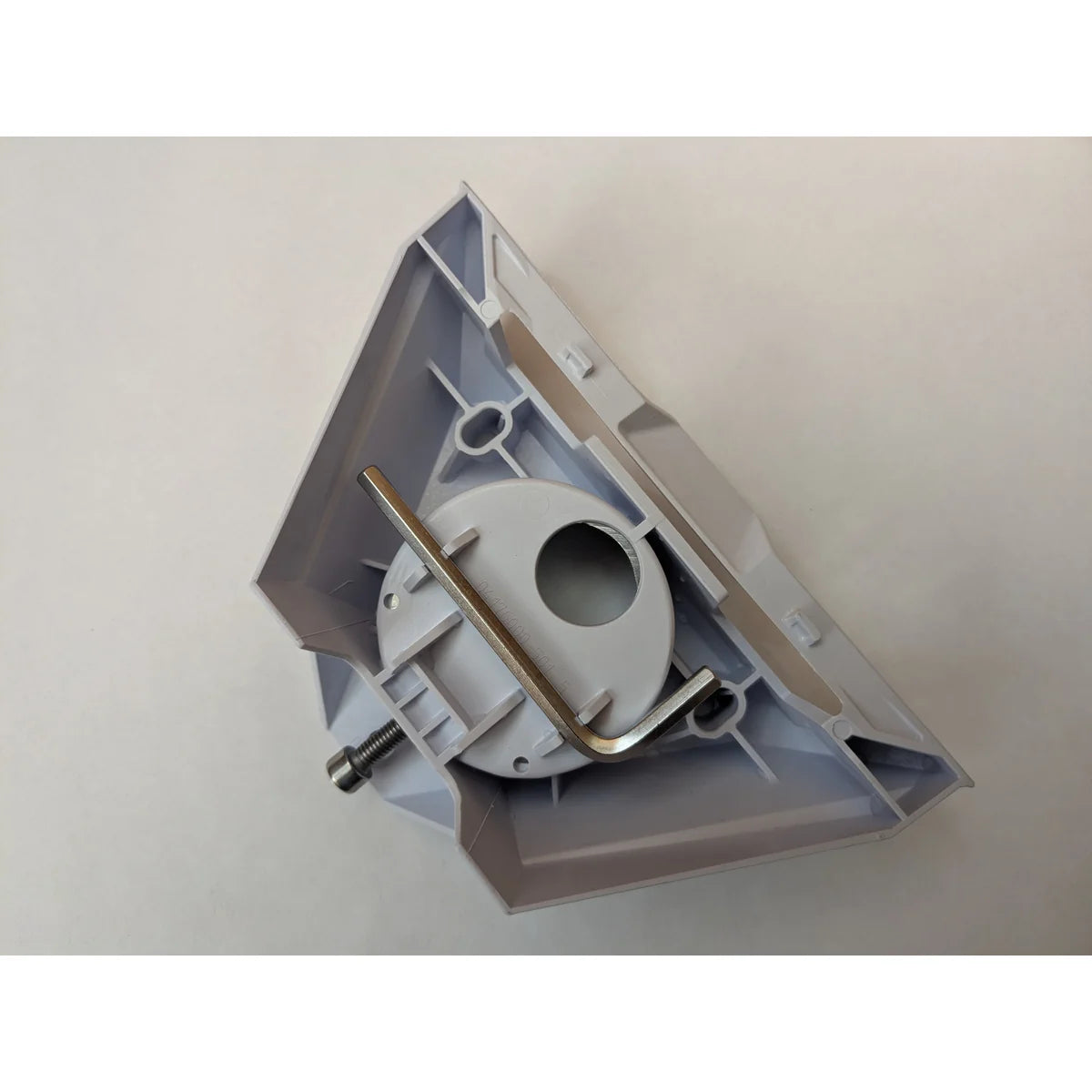

Included: 1 × genuine Starlink pipe adapter (04-176000-501). 1 × hex key.
Not included: the pole or pipe, the Starlink dish, cables, or the folding kickstand. This adapter attaches to a pole you already have; it does not come with one.
Frequently asked questions
What size pole does it fit?
Metal poles from 31 mm to 50.8 mm (1.25 to 2 in) in outside diameter, with a wall at least 3.6 mm thick. Common J-mounts and 1.5-inch poles sit comfortably in that range.
Can I use it on a PVC pipe?
No. It is specified for metal pipe only. The clamp screw needs something rigid to bite against, and plastic pipe deforms and eventually lets the dish rotate.
Is this the genuine Starlink part or an aftermarket copy?
Genuine. The part number 04-176000-501 is moulded into the body and photographed on this page. Aftermarket aluminium copies are widely sold and are not the same part.
Does it come with a pole?
No. It clamps to a pole you already have or buy separately.
Will it fit my Gen 2 rectangular dish?
No. The Gen 2 dish uses a completely different mounting interface.
Do I need tools?
Only the supplied hex key.
Should I choose this or the folding kickstand?
The kickstand stands the dish on a flat surface and can be moved in seconds. The pipe adapter fixes it to a pole permanently and survives wind that would topple a free-standing dish. If your dish has blown over even once, the adapter is the answer.
